Sub 6Ghz Solutions
ICS Offers solutions in Frequencies from 2Ghz upto 6Ghz which typically falls under this Category using OFDM Radio products . Products with Channel Size from 5Mhz upto 80Mhz within Sub 6Ghz Solutions . Offering Bandwidth from 10 Mbps upto 750Mbps per Radio Link . Solutions Designed using Various Integrated Antenna & Connectorized Radios with Choice of Omni , Panel , Grid & Parabolic Dish Antennas . Products support High end Security Encryptions from AES 128 & 256 bit as per need .

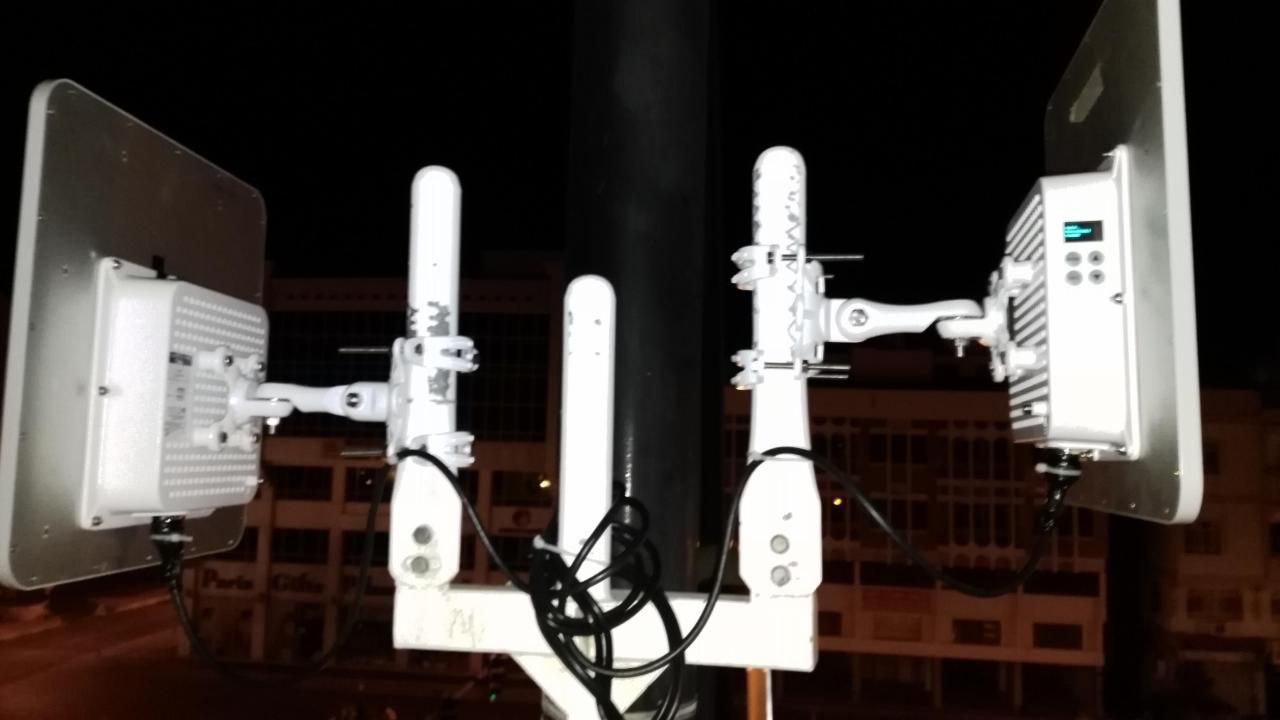

Integrated Radio with Panel Antenna
Integrated Antenna Solutions comes with Directional Single or Dual Polarized Panel Antennas . Single or Dual Polarized Antennas Options Available . Distance upto 15km can be Achieved using such Integrated Antennas . Actual Throughput varies on Antenna Gain vs Site Conditions ( Interference ,Distance etc. ) . Different options of Input power with Passive DC PoE 24/48v and 802.11af/at PoE Standard Available . No Touch Wi-Fi Maintenance Interface Available . FDD & TDD Radios Optional .

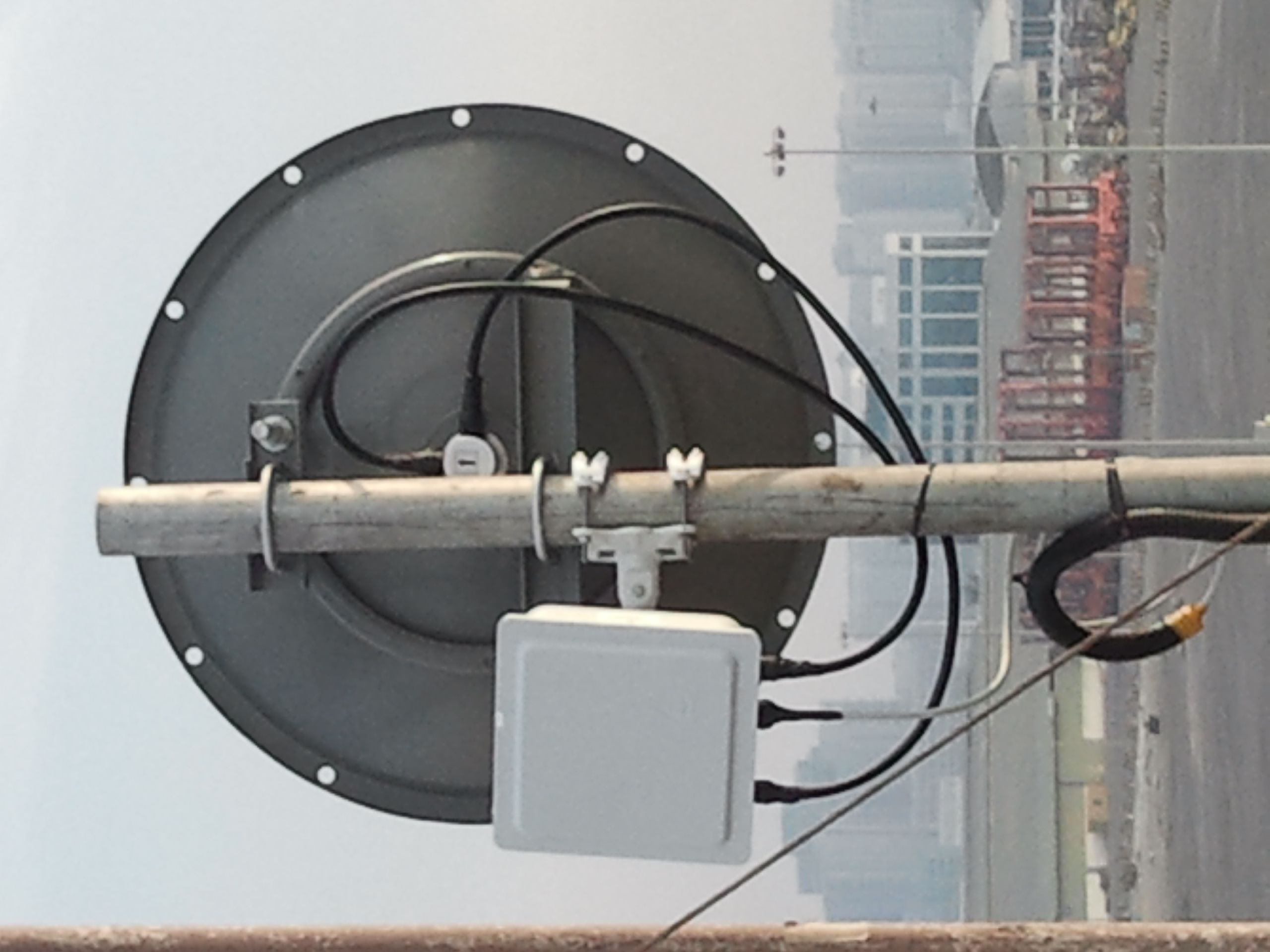

Connectorized Radio with Dish Antenna
Connectorized Antenna Solutions comes with Various Options of Single or Dual Polarized Panel /Parabolic Dish / Grid Antennas . Single or Dual Polarized Antennas Options Available . Distance upto several 100 km can be Achieved using such Integrated Antennas . Actual Throughput varies on Antenna Gain vs Site Conditions ( Interference ,Distance etc. ) Different options of Input power with Passive DC PoE 24/48v and 802.11af/at PoE Standard Available .No Touch Wi-Fi Maintenance Interface Available .FDD & TDD Radios Optional .
4 - 42Ghz Solutions
ICS Offers solutions in Frequencies from 4Ghz upto 42Ghz which typically falls under this Category using Licensed Microwave Radio products . Providing reliable Multi-gigabit speeds with reliability of 99.999% uptime with least interference . Solutions using Channel Size from 7Mhz upto 112Mhz and more Available . Compact All Outdoor Model Radios & Split Mount IDU/ODU Systems Available . Solution Offering Multi Gigabit in Single Radio Link and scaling higher using multiple combination using 2+0 & 4+0 Topologies . Redundancy Options with Frequency & Space Diversity Available . Choice of Antennas from 0.3M upto 3M . Products support High end Security Encryptions from AES 128 & 256 bit as per need .
All Outdoor System
All Outdoor Type Radio Solutions comes with Outdoor Radio ( ODU ) directly can be Attached to Parabolic Dishes . All Outdoor Radio don't require any RF/LMR Cables running on site . Single or Dual Polarized Antennas Options Available . Distance upto several 100km can be Achieved using different Antennas from 0.3M upto 3M or more . Actual Throughput varies on Antenna Gain vs Site Conditions ( Interference ,Distance etc. )
Options of 1+0,2+0,1+1(HSB),2+2(HSB) upto 4+0 Available . Operating Frequencies from 4-42Ghz with Modulation upto 4096QAM can be Achieved . QOS , OAM , Ethernet Timing & Synchronization , Adaptive Code Modulation features Available . East West Site Configuration can be also doable using such Systems . AES-128/256bit security Encryption Available . In Band & Out of Band Management Options . SNMP v1/v2 & V3 Supported .

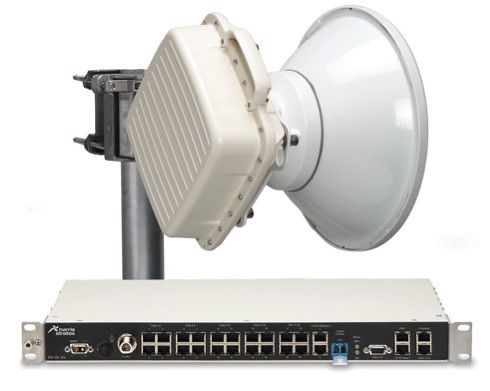

Split Mount System
Split Mount Type Radio Solutions comes with Indoor Unit ( IDU ) + Outdoor Radio ( ODU ). Split Mount System System require RF/LMR Cables running between IDU & ODU . Single or Dual Polarized Antennas Options Available . Distance upto several 100km can be Achieved using different Antennas from 0.3M upto 3M or more . Actual Throughput varies on Antenna Gain vs Site Conditions ( Interference ,Distance etc. )
Options of 1+0,2+0,1+1(HSB),2+2(HSB) upto 4+0 Available . Operating Frequencies from 4-42Ghz with Modulation upto 2048QAM can be Achieved . QOS , OAM , Ethernet Timing & Synchronization features Available . AES-128/256bit security Encryption Available . In Band & Out of Band Management Options . SNMP v1/v2 & V3 Supported .
Millimeter Wave Solutions
ICS Offers solutions in Frequencies from 60 & 80 Ghz which typically falls under this Category using Light Licensed Millimeter Wave Radio products . Providing reliable Gigabit & Multi-gigabit speeds with reliability of 99.999% uptime with no interference . Solutions using Channel Size from 125Mhz upto 1400Mhz and more Available . Solution Offering Multi Gigabit in Single Radio Link and scaling higher using multiple combination using 2+0 & 4+0 Topologies . Choice of Antennas from 20cms upto 0.9M . Products support High end Security Encryptions from AES 128 & 256 bit as per need .
E Band 80Ghz
E-Band 80Ghz Radio Solutions comes with All Outdoor type System with frequency spectrum 71-76GHz / 81-86GHz , Solution Allows Channel Bandwidth from 250Mhz upto 2000Mhz . Modulation from QPSK upto 64QAM Available . Antennas from 20cms upto 90cms Available . Bandwidth from 10Gbps upto 40Gbps can be Achieved using several combinations . AES 256-bit Encryption Available .
In Band & Out of Band Management Options . SNMP v1/v2 & V3 Supported . FDD & TDD Radios Optional .
V Band 60Ghz
V-Band 60Ghz Radio Solutions comes with All Outdoor type System with frequency spectrum 57-64GHz , Solution Allows Channel Bandwidth from 125Mhz upto 1400Mhz . Modulation from ASK , BFSK , QPSK upto 64QAM Available . Antennas from 20cms upto 90cms Available . Bandwidth from 10Gbps upto 40Gbps can be Achieved using several combinations . AES 256-bit Encryption Available .
